ホーム /製品/AC電気接触器/Dust Cover Magnetic Contactor 32 Ampere 24V 48V 110V 220V 380V AC Coil

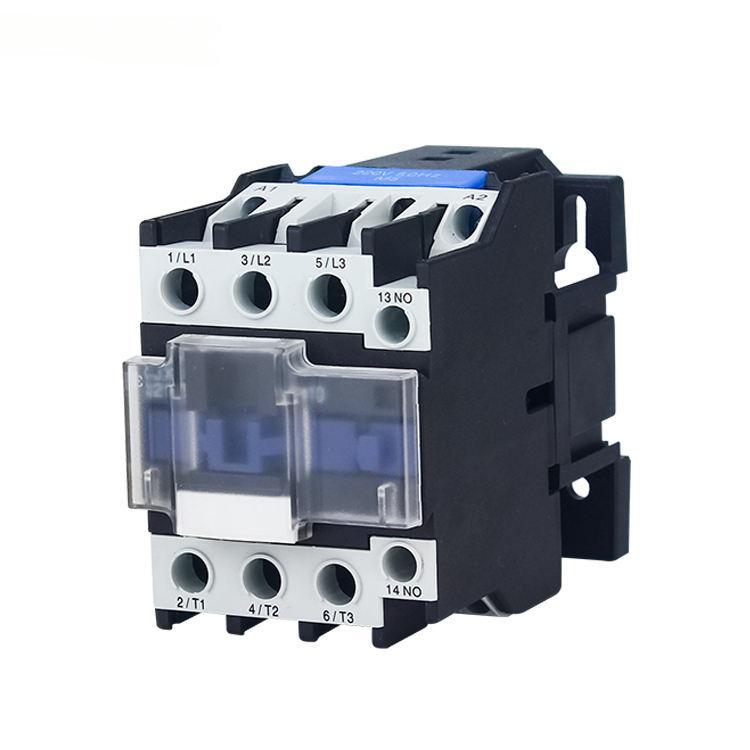

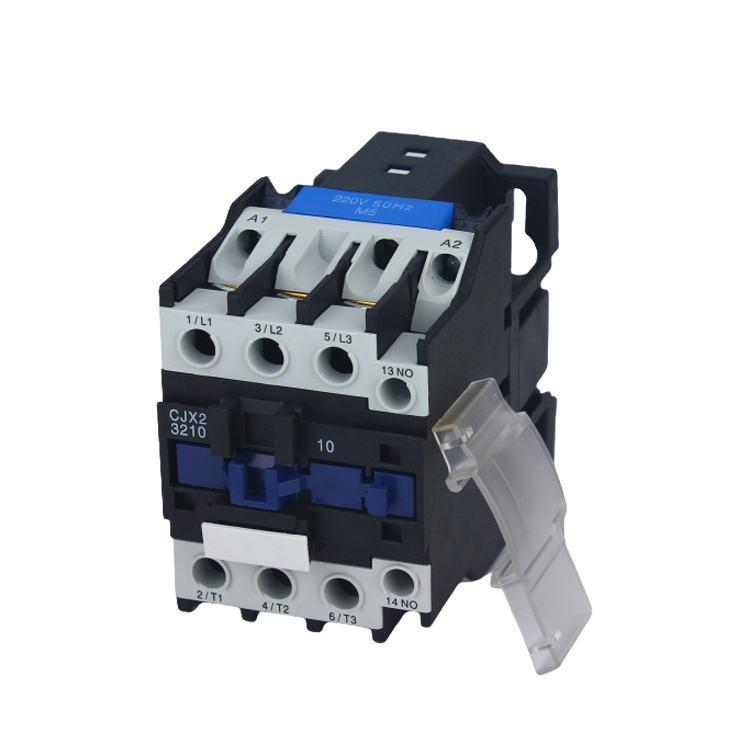

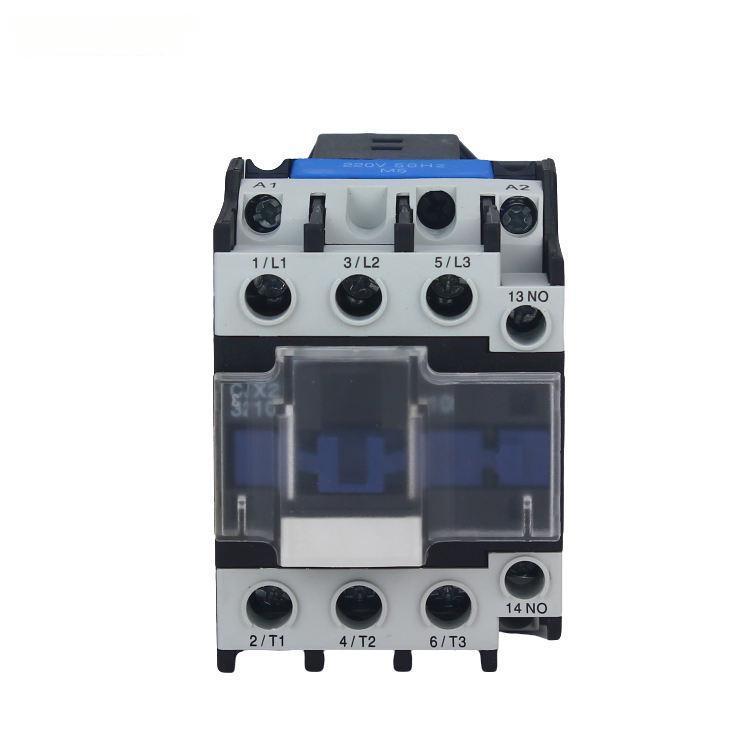

Dust Cover Magnetic Contactor 32 Ampere 24V 48V 110V 220V 380V AC Coil

100pcs
MOQ
negotiable
価格
Dust Cover Magnetic Contactor 32 Ampere 24V 48V 110V 220V 380V AC Coil
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
応用: 運動制御
タイプ: 空気磁気電気ACコンタクタ
製品名: 交流コンタクタ
定格電流: 9A-95A
頻度: 50/60Hz
段階: 3
ハイライト:

32A magnetic contactor dust cover

,

24V AC coil contactor cover

,

380V electric contactor dust protector
基本情報
起源の場所: 中国
ブランド名: YOKG
証明: CE,TUV,CB
モデル番号: 32
お支払配送条件
パッケージの詳細: 標準的な輸出梱包または顧客の需要に応じて
受渡し時間: 15日または注文数量によって異なります
支払条件: L/C、D/P、T/T
供給の能力: 1か月あたり100000PC
製品の説明
Dust Cover Magnetic Contactor 32 Ampere 24V 48V 110V 220V 380V AC Coil
Product Attributes
Application: Motor Control
Type: Air Magnetic Electric Ac Contactor
Product Name: AC Contactor
Rated Current: 9A-95A
Frequency: 50/60Hz
Phase: 3
Product Description
Application:
The contactor covered with a dust cover greatly improves the service life and pull-in time of the product, thereby better protecting the equipment. It mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. When used in AC-3, and rated voltage is 380V, rated current up to 620A, for long distance breaking circuit and frequently starting or control the motor. Combined with proper thermal overload relay can protect load circuit. Contactor can frequently start and control AC electromotor. This product conforms to GB14048.4 IEC60947-4-1 standard.
General Specifications
  • Ambient air temperature: ≤-5℃--+40℃
  • Altitude: ≤ 2000m
  • Pollution degree: Class 3
  • Installation category: III
  • Protection degree: IP20
  • Feature: Small volume, light weight, less power loss, long life, safe and reliability
  • Application: Auxiliary contacts block, time relay, current-limited contacts block, thermal relay, etc.
  • Installation: 35mm din rail (SC09~95), 75MM dil rail (SC40~95), screws
Main Parameters and Technical Performance
Parameter Value
Rated heating current (A) 50
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact NO/NC
Short-time withstand current(A) 10S 256
Rated working current(A) 380V AC-3 32
AC-4 12
660V AC-3 21
AC-4 7.5
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW 220V 7.5
380V 15
660V 18.5
Installation Dimensions
Dust Cover Magnetic Contactor 32 Ampere 24V 48V 110V 220V 380V AC Coil 0 Dust Cover Magnetic Contactor 32 Ampere 24V 48V 110V 220V 380V AC Coil 1 Dust Cover Magnetic Contactor 32 Ampere 24V 48V 110V 220V 380V AC Coil 2
Frequently Asked Questions
Q1: Would you accept OEM/ODM?
A1: Yes, we accept OEM/ODM.
Q2: Can we get samples?
A2: Yes, we can offer samples for testing quality, but the freight fee will be charged by customer.
Q3: Could you offer FORM E, C/O etc?
A3: Yes, sure.
